Cummins QSK19 Engine Parts Catalog

‹ ›

Cummins QSK19 Engine Parts Catalog

In this page you could find out the Cummins QSK19 engine Parts,All our QSK19/QSK19-M/QSK19-DM/QSK19-G genuine parts , the usual parts numbers of the parts for Cylinder Block,Cylinder head,Fuel System, Lub Oil System, Turbocharger, Gasket kit. Or Be sure to give us Cummins engine series number, so that we can check the correct spare part number and correct price. In demanding mining applications such as excavators, haul trucks, and wheel loaders, dependability is everything.

Enquiry

Cummins QSK19 Engine Parts Catalog

Part No.	Part Name	QTY	Part No.	Part Name	QTY
4024767	LINER,CYLINDER	6	205200	PIN,PISTON	6
AR12270	BERING,MAIN	1	4089500	RING,PISTON	6
AR12271	BERING,MAIN	1	3001299	CORE,AFTERCOOLER	1
AR12272	BERING,MAIN	1	207241	VALVE,INTAKE	12
205492	ROD,PUSH	12	3035110	VALVE,EXHAUST	12
3017961	ROD,PUSH	6	205208	VALVE SPRING(LONG)	24
3047549	LUB OIL PUMP	1	3021692	HEAD,CYLINDER M500	6
3801697	TURBOCHARGER M500	1	3811985	HEAD,CYLINDER G3-G4	6
4025301	TURBOCHARGER M600/640	1	3803518	VALVE,INTAKE	12
3096680	PISTON	6	3803528	VALVE,EXHAUST	12
3096681	PISTON	6	3633840	VALVE SPRING(SHORT)	24
3096682	PISTON	6	3634664	GASKET,CYLINDER HEAD	6

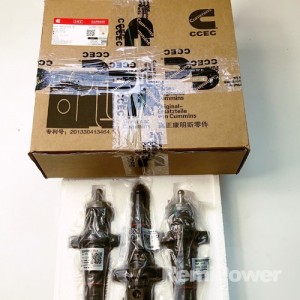

3096683	PISTON	6	3087587	INJECTOR	6
3096685	PISTON	6	3095773	INJECTOR	1

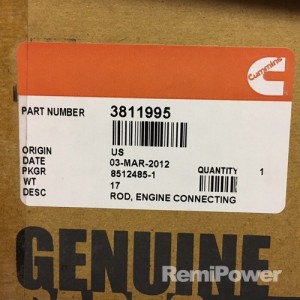

3811995	ROD,ENGINE CONNECTING	6	3594134	TURBOCHARGER	1
205840	BEARING,CON ROD	1	3022197	INJECTOR	6
205841	BEARING,CON ROD	1	3077715	INJECTOR	6
205842	BEARING,CON ROD	1	3016676	INJECTOR	1
3800728	SET,UPPER ENGINE GASKET	1	3076703	INJECTOR	1
4089391	SET,LOWER ENGINE GASKET	1	3804811	TURBOCHARGER G3	1
AR70577	SEAL,LINER CYLINDER	6	4095097	CORE,AFTERCOOLER	2
3202210	GUIDE,VALVE STEM	24	3098960	WATER PUMP	1
