Cummins K38/KT38/ KTA38-DM Engine spare parts catalog

‹ ›

Cummins K38/KT38/KTA38-DM Engine spare parts catalog

CCEC Cummins K38-DM/KT38-DM/KTA38-DM/KTA38-D(M)/KTA38-DM1/KTA38-D(M1) Spares,Aux Engine(AE) Spare parts supply for Engine Overhual(Engine OH) marine ,Engineering,Generator oil& industry. Chongqing Cummins original parts are available for KTA38-C/KTA38-G/KTA38-M/KTA38-DM/KTA38-D(M) series Final parts list depends on each engine's Serial Number ,SO number or Nameplate,pls contact our Sales Team.

Enquiry

Cummins KTA38-DM Diesel Engine List

No.	Product name	Part No.	Unit	Qty.
1	Bearing, Main	AR12250	set	1
2	Liner, Cylinder	3022157	pc	12
3	Rod, Push	205492	pc	24
4	Rod, Push	3017961	pc	12
5	Core, Aftercooler	3627295	pc	1
6	K38 Water Pump	3050445	pc	1
7	K38 Belt, V Ribbed	3003341	pc	1
8	Rod, Engine Connecting	3811994	pc	12
9	Piston	3096680-685	pc	12

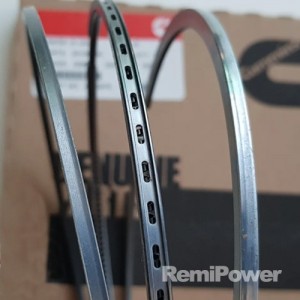

10	Ring, Piston	4089500	set	12
11	Pin, Piston	205200	pc	12
12	Head, Cylinder K38	3811985	pc	12
13	Cylinder Head/Circle	3811981	pc	12
14	Valve, Intake	3052820	pc	24
15	Valve, Exhaust	3088389	pc	24
16	Spring, Valve	3633840	pc	48
17	Guide, Valve Stem	3202210	pc	48
18	Head, Valve Stem	3166289	pc	12
19	Starting Motor	3021038	pc	1
20	Turbocharger K50/1650	4044427	pc
21	Turbocharger K38 (HX)	3803474	pc	1
22	Turbocharger WaterCooler K38(HX)	3800907	pc	1
23	Bearing, Con Rod	3047390	pc	24
24	Bushing	3043909	pc	12
25	Set, Upper Engine Gasket		pc	1
26	Set, Lower Engine Gasket		pc	1
27	Seal, Oil		pc	1
28	Seal, Oil		pc	1
29	Seal, Oil Support		pc	1
